Basic Setup

Basic setup is a task that allows for configuration of the following basic device properties:

Property	Explanation	Required
IP Address	The primary IP address of the device, in CIDR notation	Yes
Host name	The host name tag of the device	No, will default to previous value if empty.
Location	The location tag of the device	No, will default to previous value if empty
Default gateway	The default gateway for routes	No

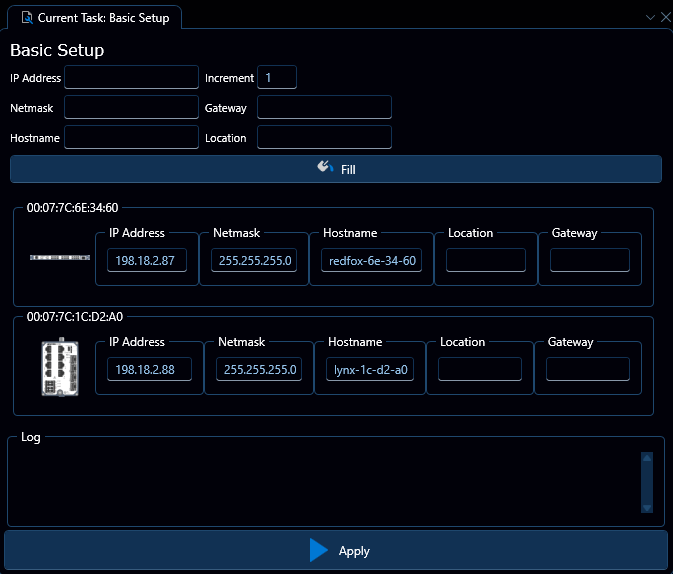

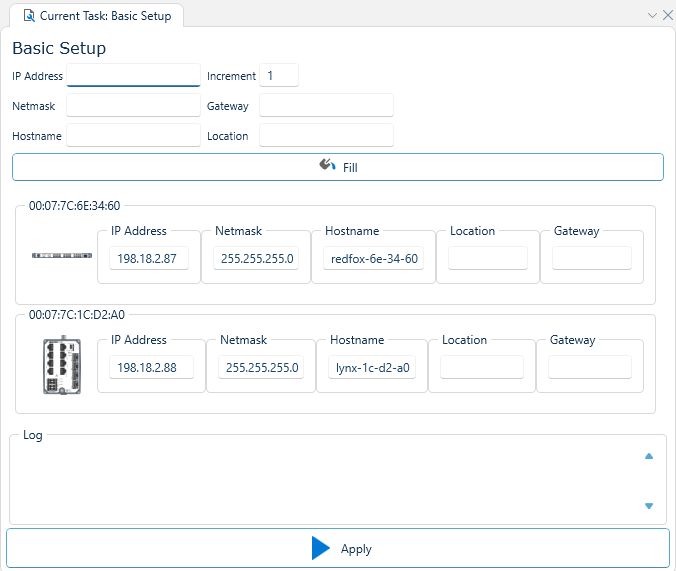

Interface Components

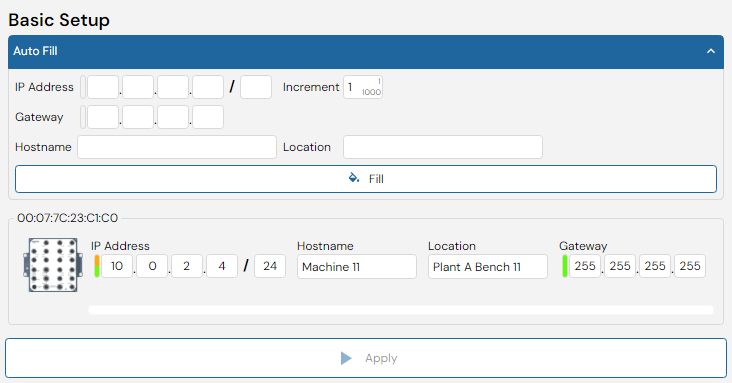

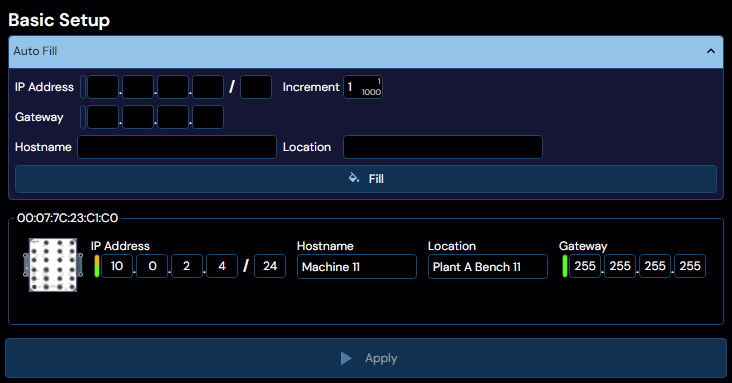

Fill pane

The fill pane allows the user to write properties once and then copy them to all devices. The increment box will operate on the IP Address field and increase the IP address handed to each device by the amount specified.

Any property left empty will be ignored when the "Fill" button is pressed.

Configuration list

Beneath the fill pane the list of individual device configurations can be found. This can be edited to set device-specific properties.
