SHDSL

SHDSL is a task that allows for configuration of SHDSL port details pertaining to certain devices. If a selected devices does not have SHDSL ports, or does not support SHDSL port configuration, it will not appear in this panel.

Interface components

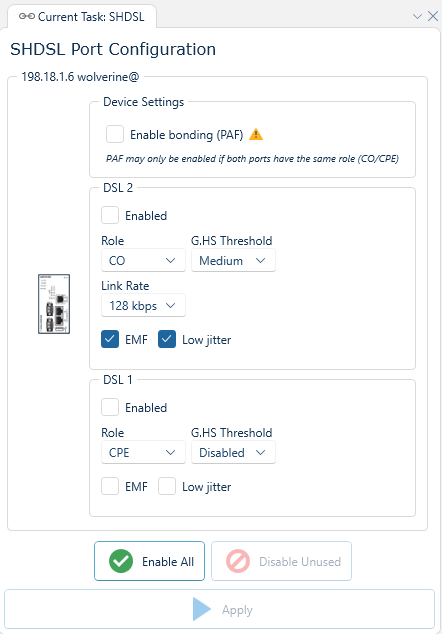

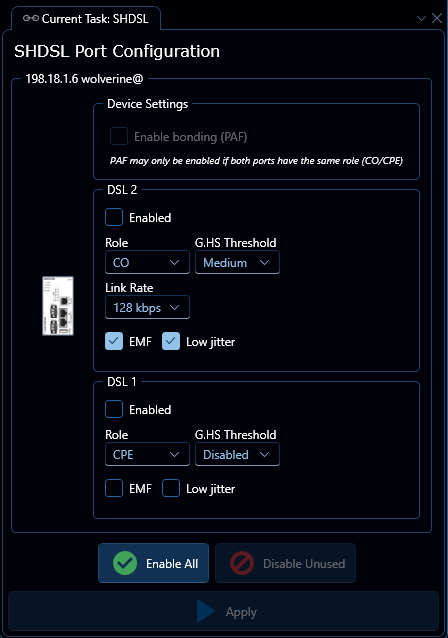

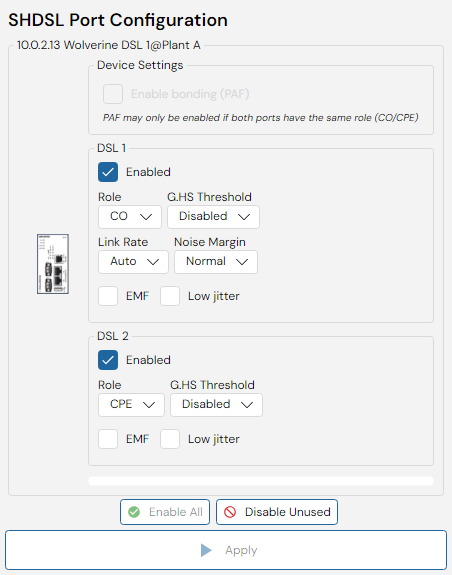

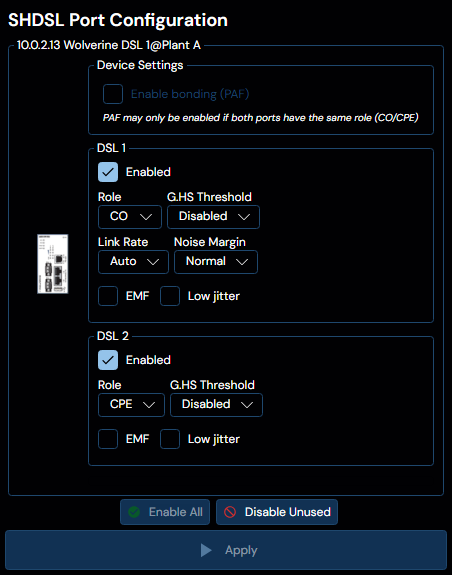

For each port, select Role (CO/CPE). When applicable, select G.HS threshold, link rate, EMF (emergency freeze), noise margin and low jitter. It will also be possible to select Pass. When applicable, it will be possible to select PAF (SHDSL bonding).

To ensure that a device is not configured so it is unreachable, WeConfig will detect if port pairs have incompatible configurations. This will only work if all connected SHDSL devices are added to the configuration panel.
